Thanx for all the help this must be a pulse start. Test the capacitor for proper storage capacity. Test the input voltage and output voltage of the ballast transformer.

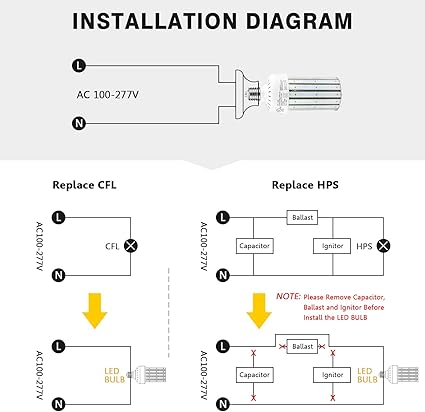

Additional Ballast Wiring Diagrams Hps Ballasts

Wiring Diagrams

240 Volt 3 Wire Split Phase Ballast Bypass Wiring

100w Hps Ballast Kit Wiring Diagram Wiring Diagram

Mfqvnrekkqyorm

Ipower 400 Watt Hps Digital Dimmable Grow Light System Kits Wing

I also have these for sale in the us for 75 including shipping.

100 watt hps ballast wiring diagram. This video is about wiring a venture 1000w hps core and coil ballast for demonstration purposes only. It shows the parts of the circuit as simplified forms and the power as well as signal connections in between the devices. Collection of 1000 watt metal halide ballast wiring diagram. High pressure sodium ballast wiring diagram a beginner s overview of circuit diagrams.

It arrived with just those 3 components the transforer and the igniter both had mini wiring diagram decals right on them. A very first appearance at a circuit diagram could be confusing however if you could review a subway map you can check out schematics. Check the manufacturer s specifications for wiring diagrams and voltages. Typically if the capacitor is not physically damaged or leaking oil it is in good shape.

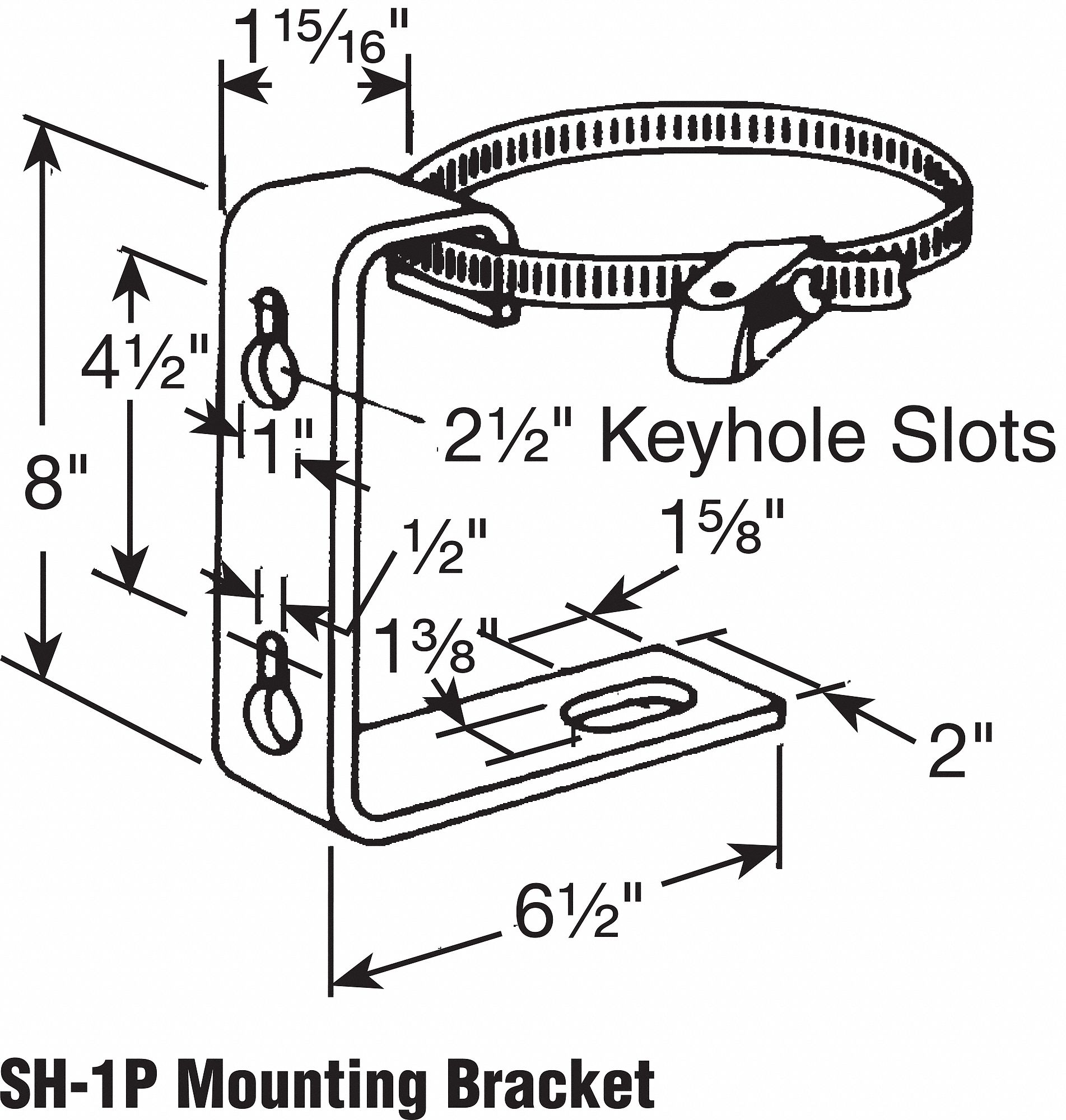

If the windings show any sign of burning replace the ballast. Venture s ballast products represent many years of experience in ballast design and manufacturing. Pulse start metal halide standard metal halide hps ballasts brackets wiring diagrams warranty information. We hope this how to video helps you replace a metal halide ballast find the replacement ballasts at.

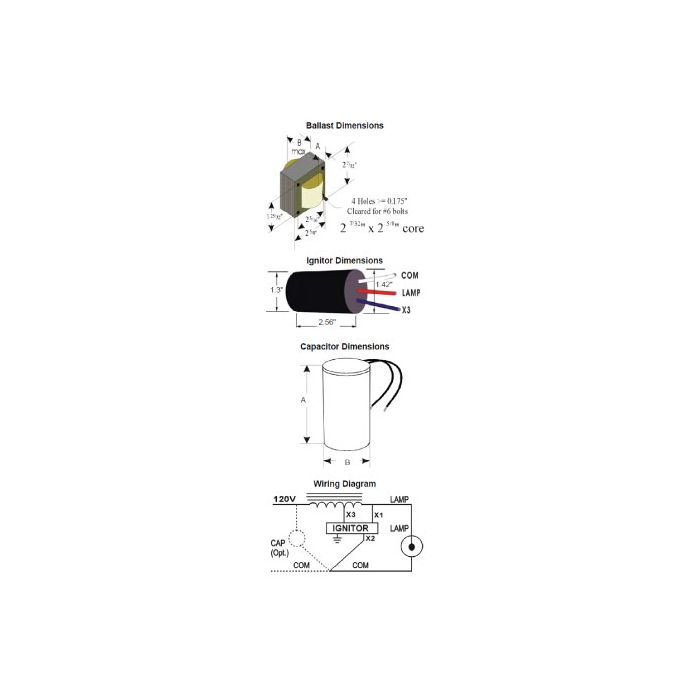

Keystone ballast hps 100r 1 kit click here to see the complete wiring diagram and specification sheet 100 watt sodium ballast transformer 120 volt replacement high pressure sodium ballasts for 100w hps core and coil circuit type r npf high pressure sodium 100 lamp watts s54 ansi ballast type 109 input watts 120 input voltage 60 hz. A wiring diagram is a simplified traditional photographic representation of an electric circuit. 1 lamp rapid start ballast diagram. Parallel ballasts can only be wired in parallel according to the diagram on the ballast.

100 watt high pressure sodium ballasts. I turned it into a pretty mean little remote ballasted 100 watt hps. 3 low watt hps 4 250 1000w hps qv 3 slimline 277v 4 high output 5 150 250w mh 480v 6 250 1000w hps 480v electronic ballast wiring diagrams 1 t5 2 lamp 2 t5 4 lamp 7 pulse start mh 9 5 tap hps 8 5 tap mh 4 t8 3 lamp 240v 277v com com 120v 208v 480v cap lamp ignitor tap x3 x2 x1 277v black 240 tan 208 purple 120v orange. Changing the wiring on a fluorescent light fixture from series to parallel involves changing the ballast from a series to a compatible parallel ballast.
